Facilities and Processes
Hot forging manufacturing process
Stage | Process | Reference | Focused management | Etc. |
---|---|---|---|---|
#10 | Raw material stock | ![]() |
Color Management By Steel Grade <Prevention Of Heterogeneous Mixing> |
Component Analyzer |
#20 | Cutting | ![]() |
Cutting weight management Cutting angle management | ![]() |
#30 | Heating | ![]() |
Heating Temperature E / PROOF Coolant Temperature E / PROOF |
![]() |
#40 | Forging | ![]() |
Dimension management Appearance inspection | ![]() |
#50 | Heat treatment | ![]() |
Organization management (Class B or above) / Hardness management | ![]() |
#60 | Magnetic particle inspection | ![]() |
Crack, overlap detection / A1 specimen verification / Magnetic tape at least 8 compartments | ![]() |
#70 | Post-treatment / Packaging | ![]() |
Burr removal Weighing system packaging | - |
#80 | Final Inspection | ![]() |
Dimensional inspection / Hardness E / PROOF / Organization examination | ![]() |

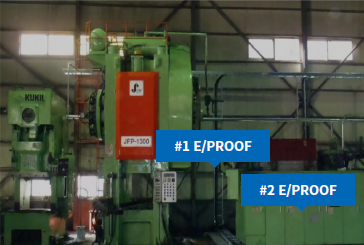

ERROR PROOF
Process | #1 ERROR PROOF (ERROR PROOF (Material heat temperature) |
#2 ERROR PROOF (Cooling water inlet temperature) |
Record management |
---|---|---|---|
450TON PRESS | ◎ | ◎ | Computer record storage |
750TON PRESS | ◎ | ◎ | Computer record storage |
1300TON PRESS | ◎ | ◎ | Computer record storage |
2500TON PRESS | ◎ | ◎ | Computer record storage |
